RCV Toyota LJ70, KZJ70, Bundera 30 Spline 4340 and 300M Chromoly Birfield and Axle Set with Hub Gears, Gun Drilled (CVJ2851-PLC2)
Each Axle Kit now comes with RCV Made in the USA 4340 Inner hub gears absolutely FREE.
Now Gun Drilled for Easy Greasing!
Manufactured in the U.S. using only high-strength chromoly materials, RCV Performance Ultimate 30 spline CV Axle set simply replaces your weak Toyota axle shafts with a new high-strength design. The factory axles were designed with 30 splines at the differential, and neck down to 27 Spline at the CV creating a common failure point. This axle set upgrades the weak 27 splines at the CV to a 300M 30 spline race eliminating the need to neck down the shaft.
Tests prove Ultimate CV Axles to be twice as strong as OEM shafts, and they're just as tough at a straight angle as they are at extreme angles. Even if you have big tires and big power there are no worries. Ultimate CV Axles are low maintenance and operate with a smoothness you can feel - whether off road or on the street.
Axle set includes right and left inner axle shafts & 2 pregreased CV joints. Black oxide coating is standard,
What makes these axles unique among any other axle set is that the inner race is made from 300M. You can tell that the race is 300M by a slight discoloration from the rest of the birfield. These are the only birfields that have this billet 300M race.
Inner Axle Shaft -Long
Inner Axle Shaft -Short
2 - 4340 Chromoly and 300M RCV Birfields

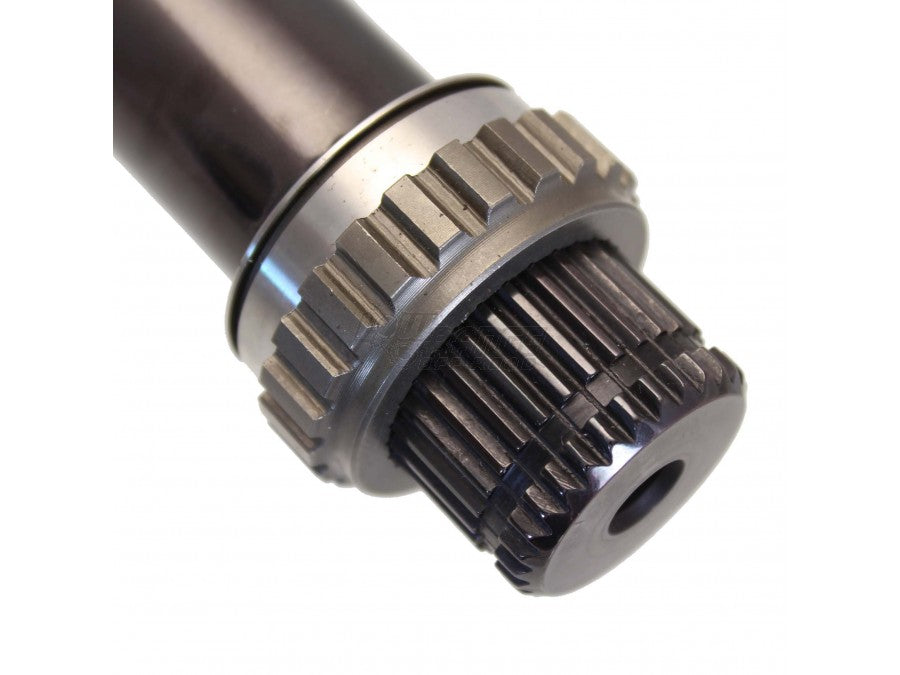

2- Inner Hub Gears, 4340 Chromoly
Birfields come pre-greased. Always use moly based grease for CV Axles and Birfields.
Fits: International Versions (NON USA) LJ70, LJ71, LJ73, LJ74, LJ78, RJ70, RJ73, RJ78, KZJ70, KZJ71, KZJ77,
|OEM/RCV Inner Spline||30|
|OEM/RCV Outer Spline:||30|
|OEM CV Inner Spline:||27|
|RCV CV Inner Spline:||30 (300M Race)|
|OEM/RCV Right Inner Axle Length:|
|OEM/RCV Left Inner Axle Length:|
|Inner Hub Gears Included?||Yes|
