RCV Ultimate Chromoly Birfield CV and Axle Axle Set for Nissan Patrol Y61 GU, 1997+ (CVJ3525-BSP-RCV)

by RCV
Sold out
$2,000.00

Manufactured in the U.S. using only high-strength chromoly materials, RCV Performance Ultimate CV Axle set simply replaces your weak Nissan Patrol Y61's axle shafts with a new high-strength design. The factory axles were designed with 31 splines at the differential, and neck down to 27 Spline at the CV creating a common failure point. This axle set upgrades the weak 27 splines at the CV to a 300M 30 spline race eliminating the need to neck down the shaft. Tests prove Ultimate CV Axles to be twice as strong as OEM shafts, and they're just as tough at a straight angle as they are at extreme angles. Even if you have big tires and big power there are no worries. Ultimate CV Axles are low maintenance and operate with a smoothness you can feel - whether off road or on the street.

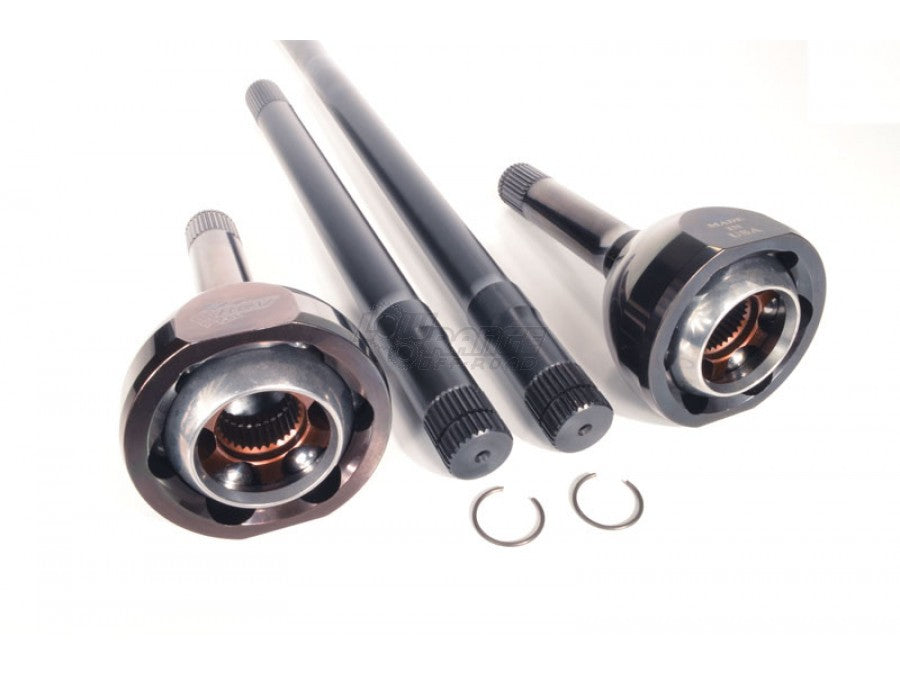

Axle set includes right and left inner axle shafts & 2 pregreased CV joints.

Application: Nissan Patrol Y61 GU ('97 up). Includes right and left inner axles & 2 CV joints
OEM/RCV Inner Spline: 31
OEM/RCV Outer Spline: 31
OEM CV Inner Spline: 27
RCV CV Inner Spline: 30 (300M Inner Race)
OEM/RCV Short Inner Axle Length: 17.06"
OEM/RCV Long Inner Axle Length: 36.75"
