Toyota Pinion Flange Fit Kit Use When Upgrading to 29 Spline Pinion by Nitro (YOKTOYFITKIT-29)

Replaces Toyota OE Part number 41204-35100 & 41204-35110.

Required to fit Nitro 29 Spline 8” or 9.5” Ring & Pinions to 2002 & older vehicles.


In 2002, Toyota started using 29 Spline pinion & flange on the 8” & 9.5” differentials. Following Toyota's lead for an upgrade, Nitro Gear & Axle has been upgrading much of their line of Ring & Pinions for Toyota to 29 Spline. This means, if you are fitting the newer 29 Spline Ring & pinion to a 2002 or Older diff, you will need this flange.

Differential: Toyota 8" & 9.5"
Pinion Spline Count: 29
Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm
Kit Includes:
  • Dual Drilled Pinion Flange
  • Pinion Nut
  • Pinion Seal

29 Spline

Nitro Ring & pinions are made from the highest quality forgings using state-of-the-art CNC machining processes. Strict tolerences ensure precision fitment and hassle free installation. Computer controlled lapping processes result in an excellent contact pattern and a quiet running setup that will last.

Each new application is test fitted by real differential experts and put through stringent review process prior to being released. Nitro is hard at work developing new products that you demand.

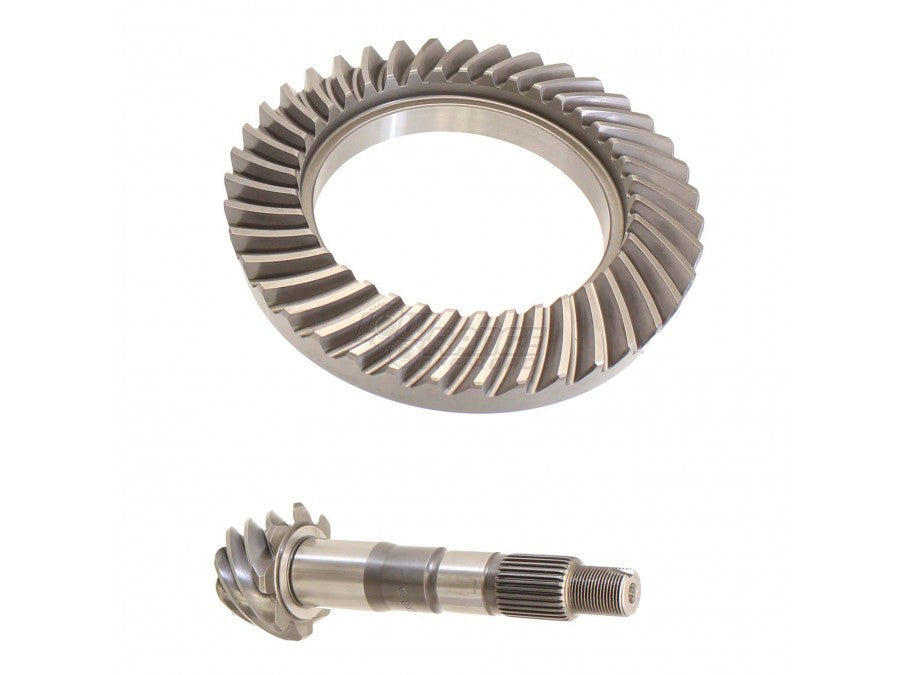

Toyota 8" V6 29 Spline Ring and Pinion NITRO

High performance Nitro Ring & Pinion gear set for Toyota V6 in a 29 Spline

Nitro Ring & pinions are made from the highest quality forgings using state-of-the-art CNC machining processes. Strict tolerences ensure precision fitment and hassle free installation. Computer controlled lapping processes result in an excellent contact pattern and a quiet running setup that will last.

Each new application is test fitted by real differential experts and put through stringent review process prior to being released. Nitro is hard at work developing new products that you demand.  Models w/ factory 3.07 & 4.88's have a different offset and will need a new dropout when changing ratio.

NOTE

 The spline on the Pinion for the flange is 29 Spline, if you have a 27 spline flange you will also need to purchase a 29 Spline Flange with Nut and Seal

Details

For many years Nissan Patrols have been well known for their strength & reliability all over the world. Out of the box they feature some stout drivetrain. When lifted and running oversized tires many have found performance and economy to suffer. The best remedy is to change the gear ratio in your differentials. The problem is OEM Ring & Pinions are difficult to source in low ratios, and very expensive. Since Nissan Patrols are not offered in the USA, none of the primary Gear suppliers have offered anything aftermarket, until now. Nitro Gear & Axles has addressed this by offering Ring & Pinions for the robust H233b rear and the H233b front Reverse cut diff. Nitro Gear has quickly become the #1 choice for aftermarket gear ratios around the globe, and makes an effort to cater to demands of consumers whether in the USA or otherwise.

Ratios   4.63       5.13

Vehicle Applications:
  • 1987-1998 Nissan Patrol GQ Y60 (Front)
  • 1998-2009 Nissan Patrol GU Y61 (Front)
  • 1987-1998 Nissan Safari (Front)
  • 1988-1994 Ford Maverick (Front)
Toyota ARB Air Lockers

Toyota ARB Air Lockers

by ARB
$1,700.00

The ARB  Air Locker is one of the world’s most highly regarded traction aid. The ARB Air Locker is a driver controlled locking differential originally designed to give serious 4 wheelers the traction needed to combat extreme off road terrain. When extra traction is required, the driver activates the Air Locker via a convenient dash mounted switch. Pneumatic pressure supplied by an on board air compressor engages ARB’s patented locking mechanism within the Air Locker, thus preventing the wheels from turning independently. The Air Locker is deactivated by flicking a switch, returning the differential to normal. By far the most coveted locker in the world! Choose from front or rear lockers.

Models

RD132 Toyota 8 inch 4cyl, V6 and High Pinion FJ80 Air Locker

The RD132 Superceeds the RD23 in March of 2007.

If you have a 4cyl differential, late model 50.00mm [1.969"] id carrier Bearings must be used. (ARB Part No. 160116)

RD142 Toyota Land Cruiser 9.5" Air Locker Full Floating

Please Note: The RD142 is made for all 50mm carrier bearings. If you are installing an Air Locker into an earlier model Toyota with a 45mm differential carrier bearing inside diameter then you will need to use the higher rated later model 50mm bearings: Timken # 32010X-32010X or ARB # 160116. If your OE carrier bearings have an ID of 50mm, replace them with new bearings of the same type.

Toyota Land Cruiser 9.5" Differentials (12 Bolt Full Floating. What does this mean "Full Float"?  The axle shaft is splined on both ends, the axle shaft does not support the weight of the vehicle, the bearings do- therefore, the axle "Floats" inside the axle housing.)

Please Note, this will not fit FJ80 / LX450 Front as these are 8" high pinion reverse rotation differentials.

This locker will not work with any of the semi float c-clip rear axles!

How do I tell if I have a full floating or semi floating rear axle?  If the wheel hub is flush with the wheel it is a semi floating rear axle. If it has a hub that sticks out past the wheel then it is a full floating rear axle.



If you have a 2001 and Older Toyota Pickup then most likely your pinion flange is going to be 27 Spline. The easiest way to verify this is to count the splines on the pinion gear. If you want to run the  29 Spline Ring and Pinions, you will need a new 29 Spline Flange, Seal and Nut.

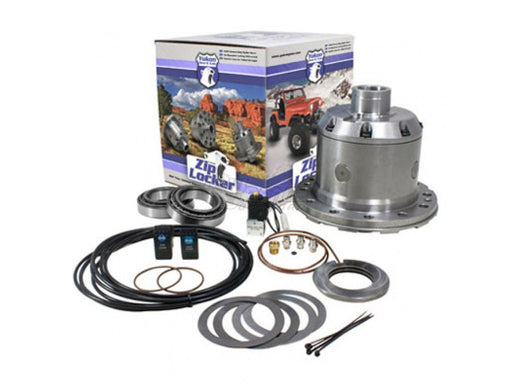

This is the Zip Air Locker for the Toyota 8" V6 Differential.

So you may ask, since it is cheaper than what we are used to, is it going to break?  Well, we can say this... the case is a forged chunk of 4320 chromoly to start.

The Yukon Zip Locker is the latest in on-demand traction. Its air-operated design allows you to switch from an open differential to 100% lockup when you need it, giving you the ultimate in driver selectability.

The Yukon Zip locker is an air operated locker that provides selectable traction for off road or street use. This unit features 4320 Chrome Moly internals for added strength. Assembled in the USA! compressor sold separately.

Locker Includes:



-Carrier Bearings for V6 Model (50mm ID Bearing)

-Switch with front and rear covers (So you can use the locker in the front or the rear of your truck)

-Nylon Line

-Seal Housing

-Quick Connect Air Fittings and Associated Adapters

-Zip Ties for Nylon Hose Routing

-Installation Instructions and Service Manual by Yukon Gear

Manufacturer Part Number: YZLTV6-30



Fits:

-Toyota 8" V6, or Turbo 4cyl Style Differentials found in 1986-1995 Toyota Pickup, Hilux, and 4Runner. (50mm ID Bearings)

-1996-2009 4Runner 8" Rear Differential without elocker.

-2007-2009 FJ Cruiser 8" Rear Differential with 50mm ID Carrier Bearings without Elocker.

-Toyota FJ80 Front High Pinion 8" Differential without Elocker.

-Toyota Hilux Pickup 1985-1997 with 50mm ID Carrier Bearings.

-Will not fit 2010+ FJ Cruiser and 4Runner.

-Will not fit non-elocking Tacoma 8.4" or T100 Differential.

-Will not fit elocking carrier found in Tacoma, 4Runner or FJ Cruiser.

If you are not sure on the differential you have, measure the carrier bearing Inner dimension, the V6 models are 50mm ID.
